| Performance | Parameter (mm; kg) | Navigation types | QR code or Laser Natural Navigation Slam | |
| size | 956*730*240 mm | type of battery | Lithium Iron Phosphate (Lifepo4 ) | |
| Rotation diameter | 1112 mm | battery capacity | 48V/33Ah | |
| Self-respect | 160 kg | Rated battery life | 8h | |
| Rated load | 600 kg | Charging time | 1.5 h | |
| Adapt to the largest bin size | 800*1200 mm EU palet or 1200x1200 palet (length*width) | Cycle life | Full 1000 times | |
| Lifting Height | 55 mm | Crossing ability | <5 mm | |
| Single pick and place time | 4 s | Ability | ＜3mm | |
| Minimum pick-up bin height | 250 mm | Ability to cross the slope | ＜3-5 % | |
| Height of pick-and-place box | 310 mm | Operating temperature | 0-45 ℃ | |
| Carrying shelves | 6 shelves (2.2 meter) | Lidar Obstacle Avoidance | Yes | |
| No-load speed | ＜2.2 m/s | Collision detection bar (optional) | Yes | |
| Full load speed | ＜1.5 m/s | Available e-stop | 2 sides | |
| positioning accuracy | ±10 mm | Communication | Wifi/ 5G | |
| Stop accuracy | ±5 mm | Debugging Interface | Open API | |
| Stop angle accuracy | ±1° | noise | <70 dB |
Double lidar - new product with dual natural navigation and 360 rear view lidar
AMR Robot and AGV robots, also known as Automated Guided Vehicle products, are mainly designed for material transfer. They are ideal products for transferring applications such as routine pallets, boxes, shelves, parcels or baskets in factories. M60 can transfer your product correctly thanks to the features it contains. It can offer different mapping, speed and sensitivity features with natural or QR navigation. Ideal for EU and ISO pallets with a carrying capacity of 600 kg. With conveyor or flange attachments, it can receive and deliver its material directly from the fixed conveyor or from fixtures. Thanks to the camera on it, you can distinguish your material and send its type to the warehouse management or Lars traffic management program. One of the most important features of the M60 AGV robot is that it can turn short and long sides for materials with different short and long sides, such as EU pallet. For this, it is possible to add an extra 3rd axis on it. The laser system on it can be used for obstacle recognition and navigation. When the laser system encounters an obstacle, it can take an alternative path and reach the right point. With its advanced suspension system, it shows superior performance on deformed floors.

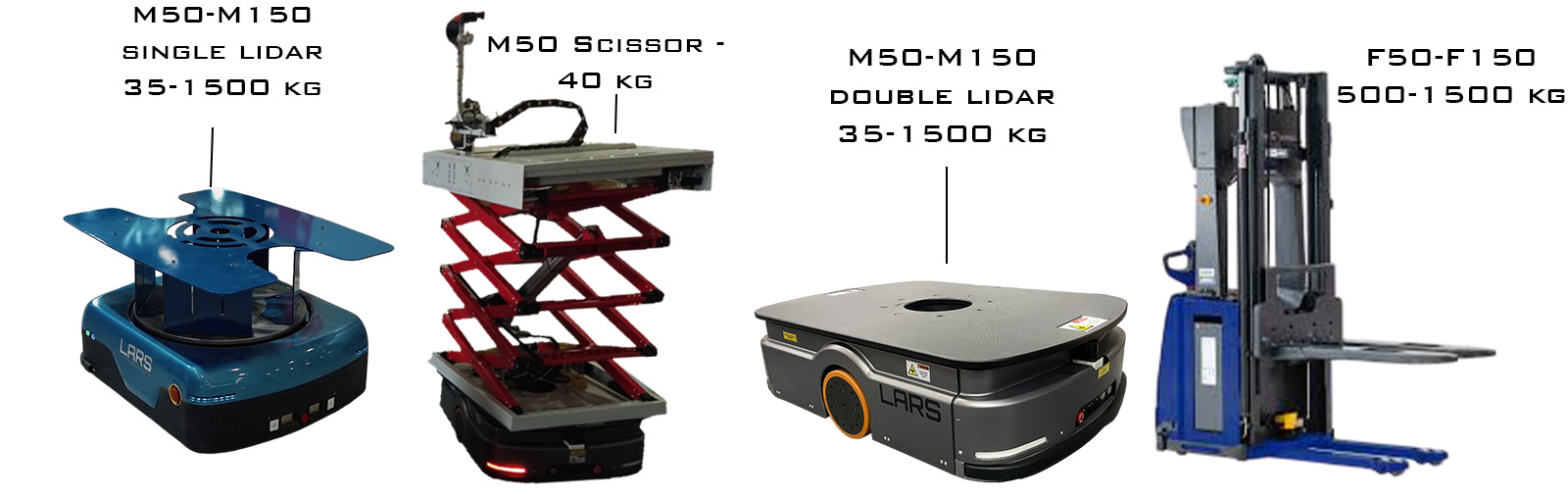

Adaptation to different material types with its wide product family
